Scoliometer Phone Gadget + App
LKK Design | Client Consultant Project JUN 2024 - AUG 2024
Skills Keywords
Sketching, Prototyping, Ideating, Modeling, Rendering Form Study | Product Design | Form follows function | App Design
Tools
Miro, Procreate, Solidworks, Keyshot, Photoshop
Background

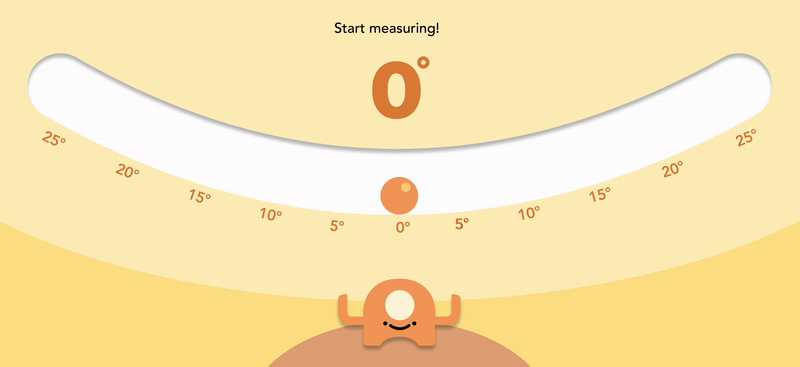

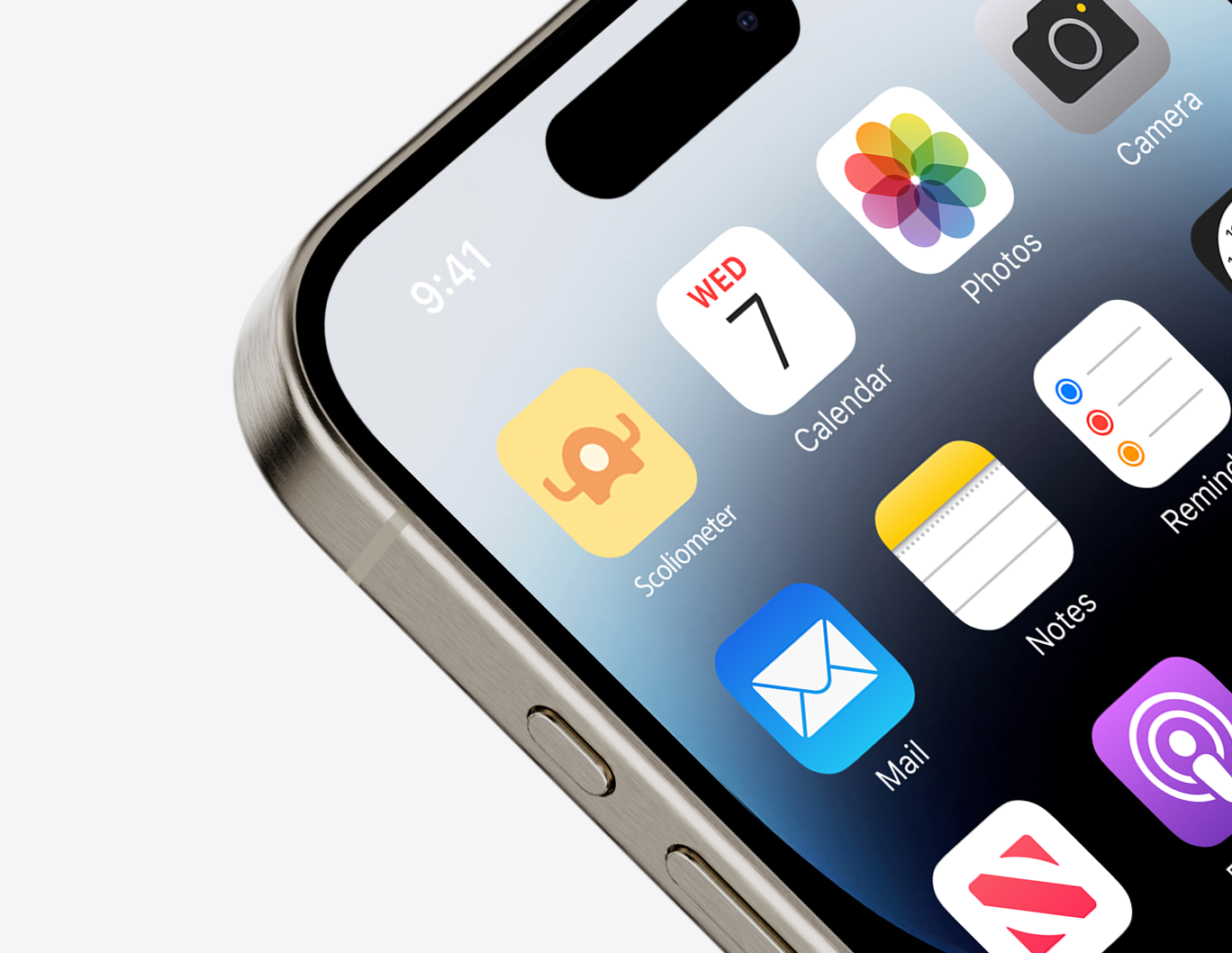

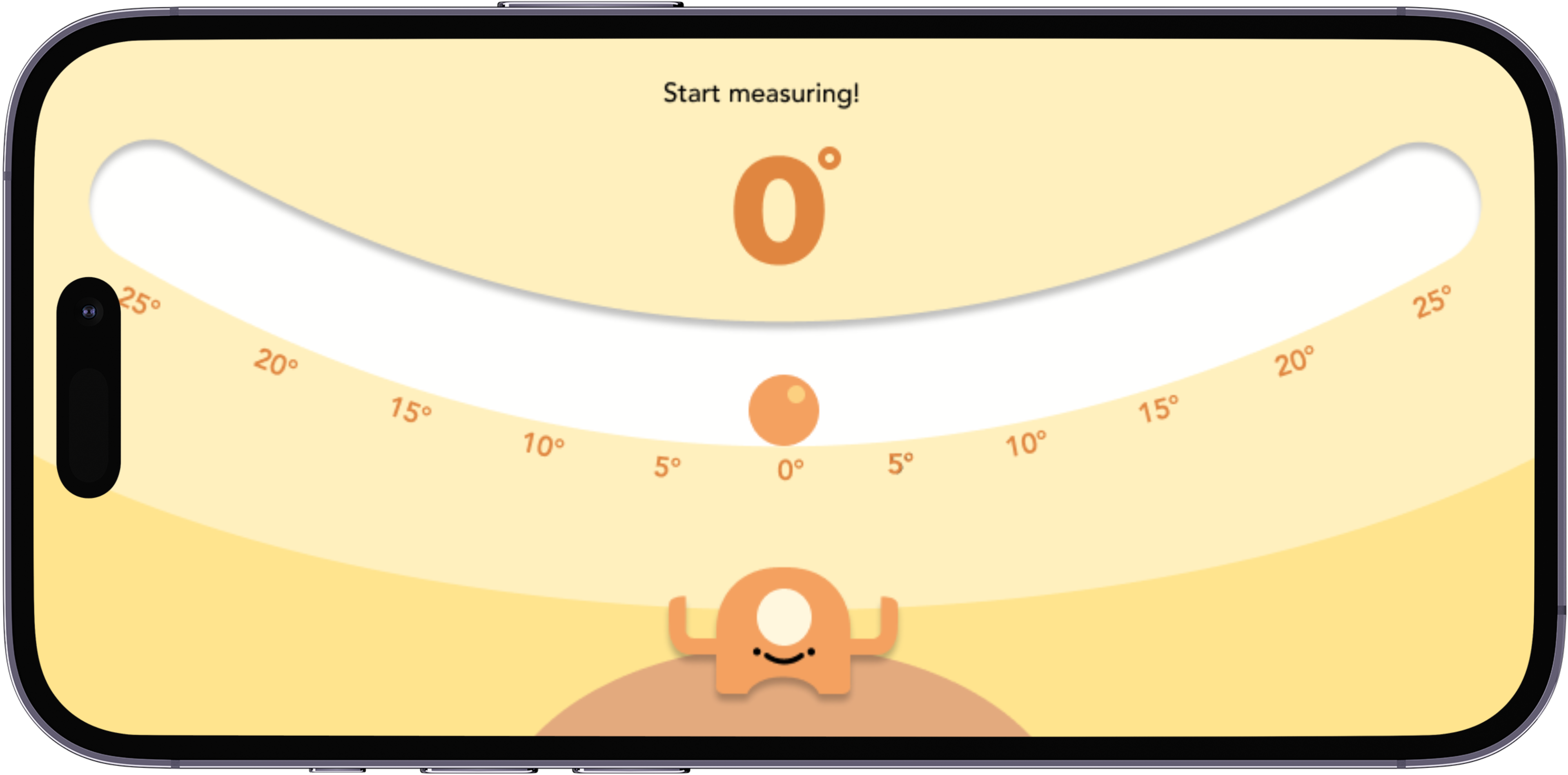

Orthopedic doctors have discovered a simpler way to use scoliometer apps, applications designed to track the curvature of the spine, for identifying scoliosis in patients. These apps empower doctors, patients, and even individuals outside of medical settings to easily learn about and measure spinal curvature independently.
Concept

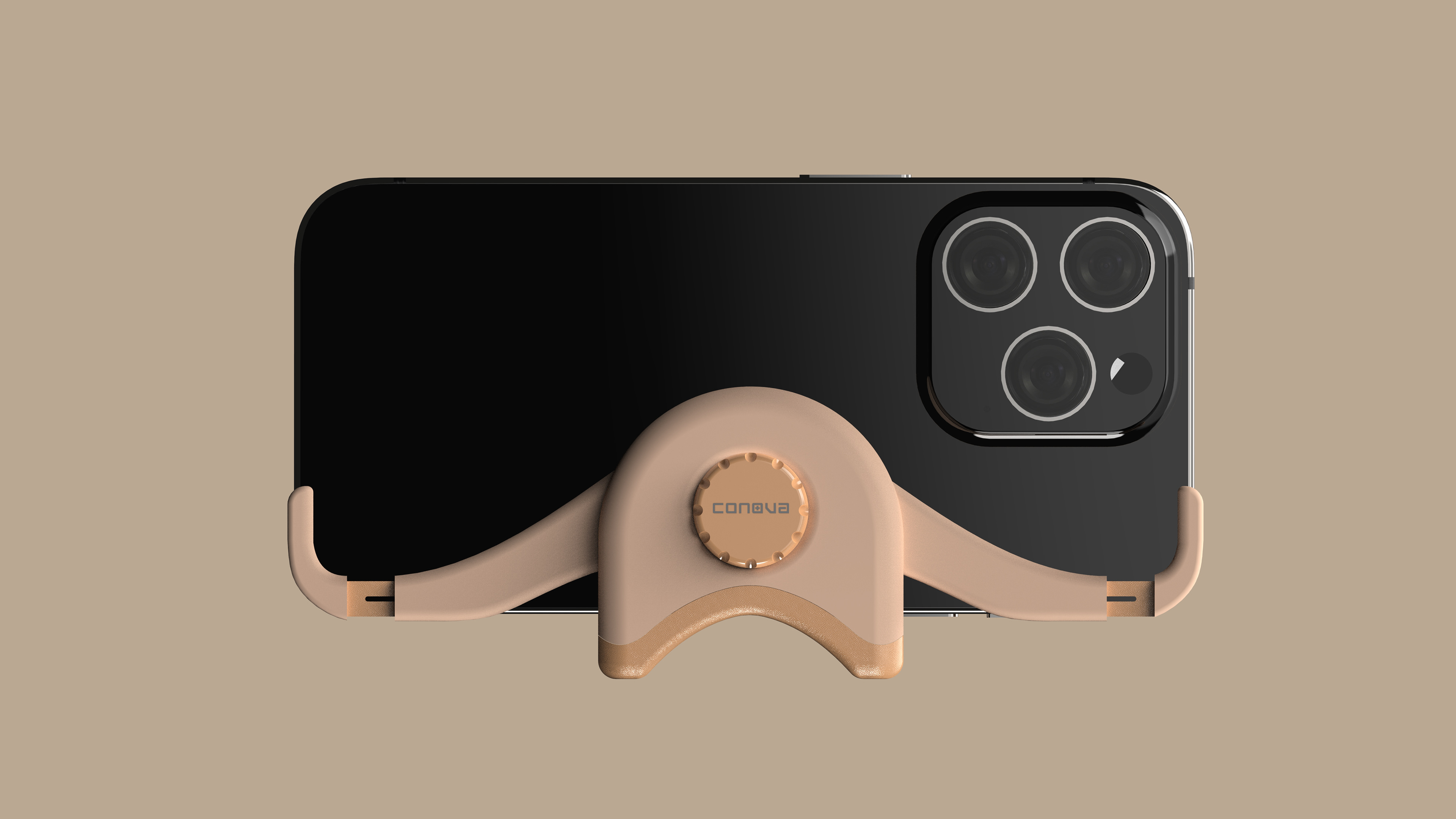

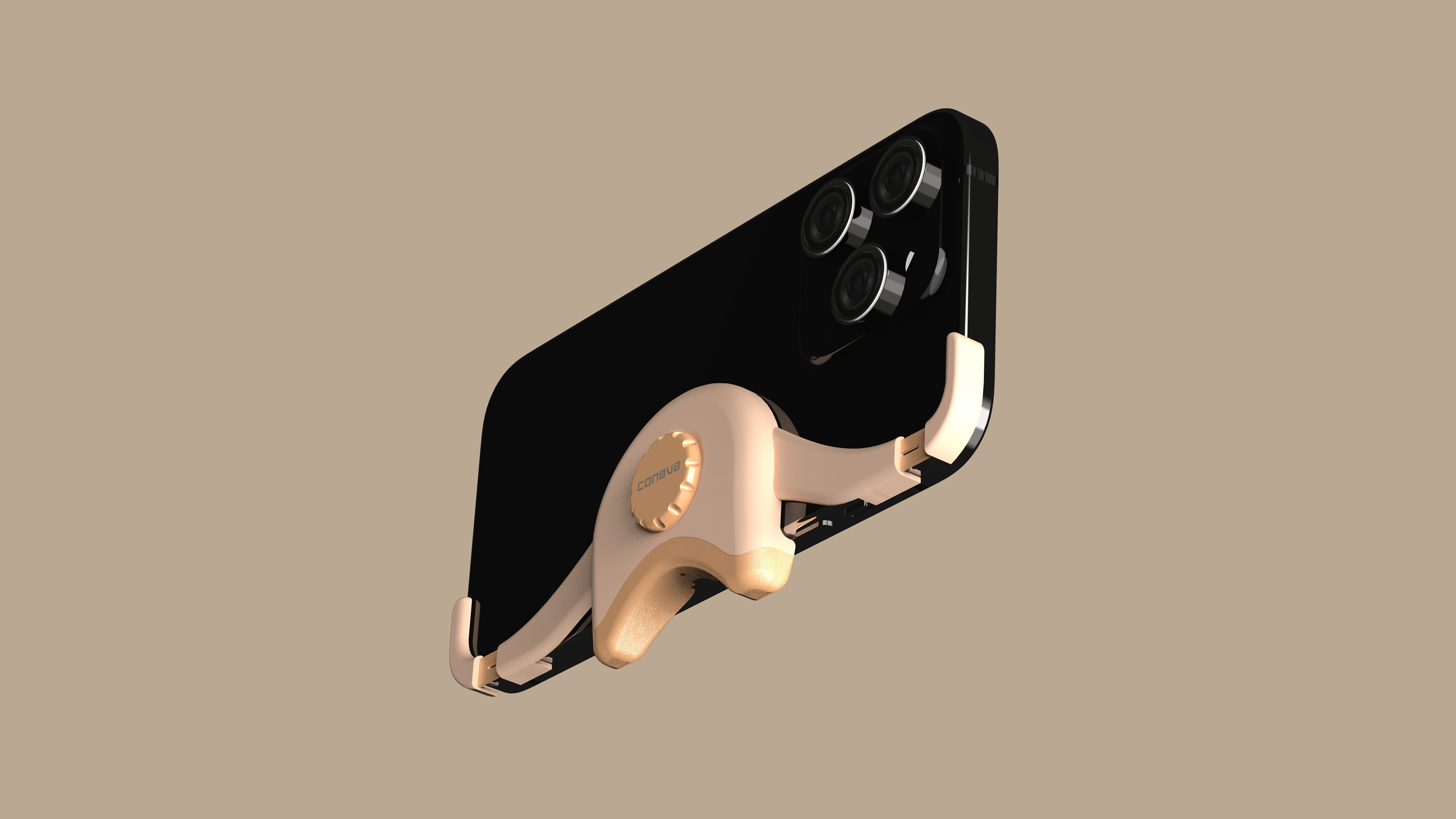

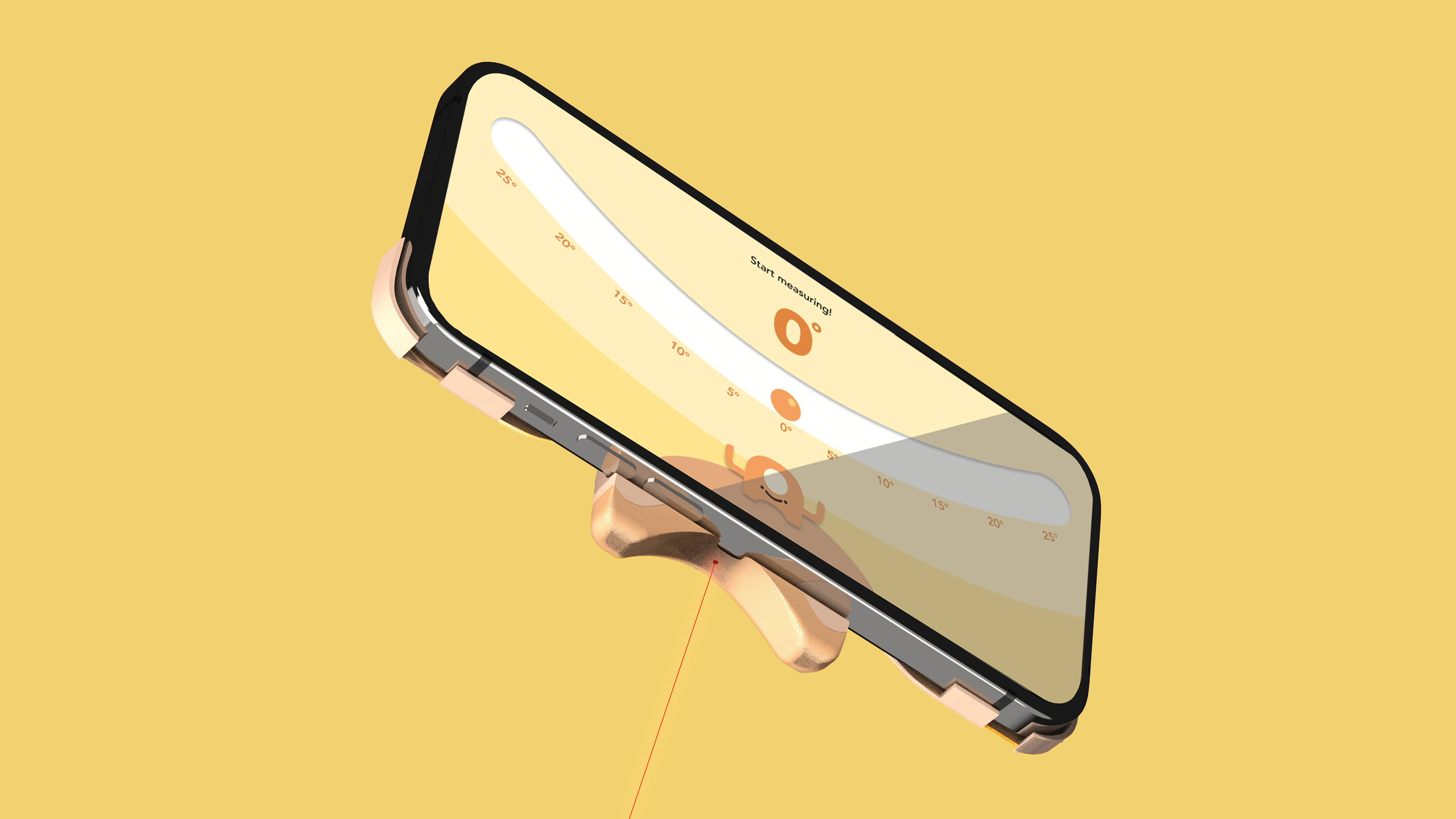

The client proposed a phone gadget that attaches to the back of your phone, stabilizing the scoliometer app with a curved surface to guide the measurement of the spine smoothly. It also includes a laser for more accurate spine measurements.

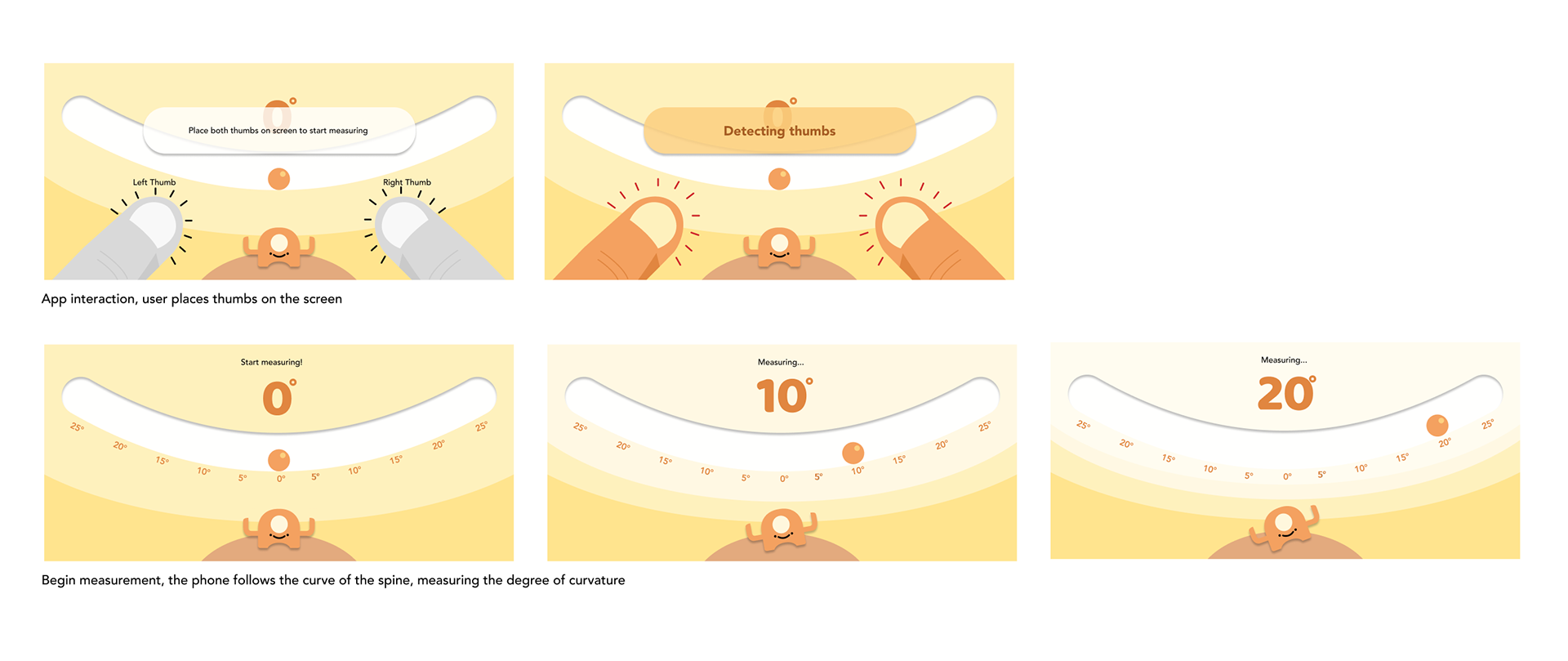

Usage: The scoliometer will move to the left or the right to
match the curve of the spine
Doctor holds device, aligned on Patient starts bending down, Doctor traces the spine dow
the spine of the patient exposing the spine bone measuring the curve
Client Proposed Product Usage
When in use, the product status is as follows:

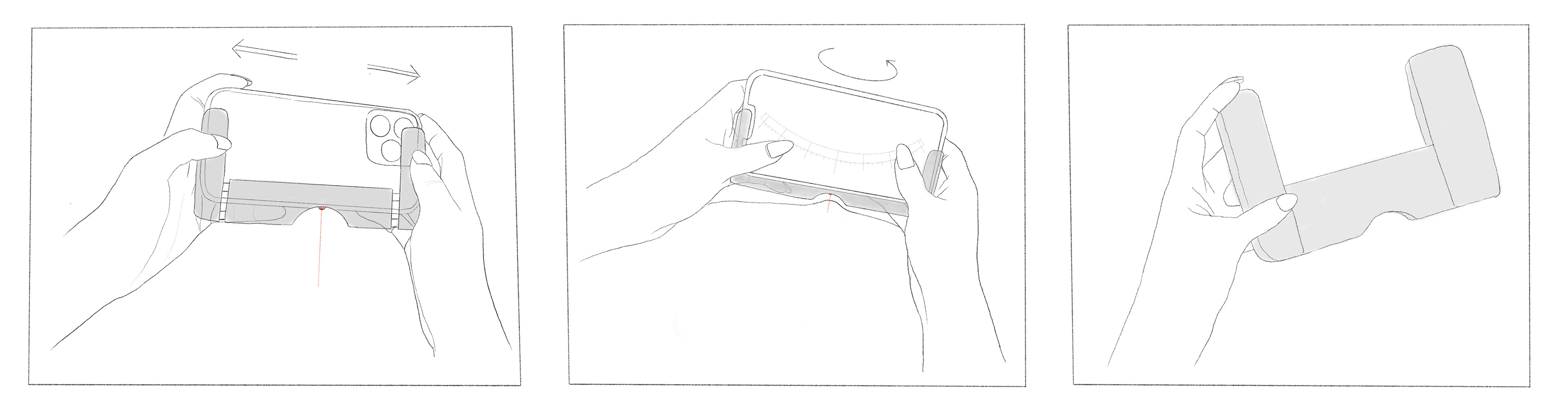

1. Open the telescopic arm and fix it on the mobile phone (long side)
2. Turn on the laser switch to assist in positioning on the spine
3. When measuring ATR, the measurement posture is as follows:

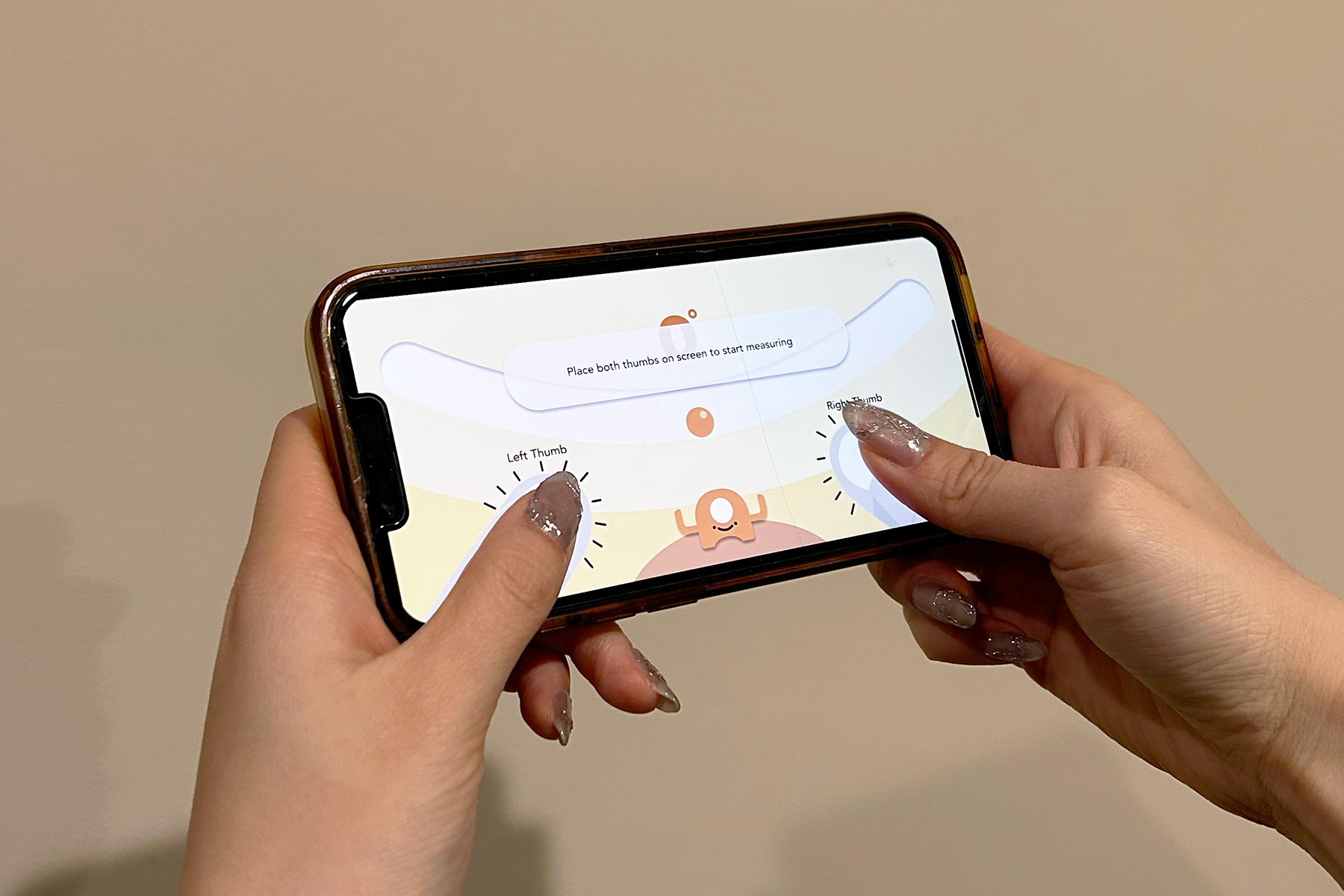

When measuring, the hand-holding posture is as follows:
Hold with both hands, thumb forward, four fingers behind to assist
4. After the measurement is completed, retract the telescopic arm and return to the initial state
1. Open the telescopic arm and fix it on the mobile phone (long side)
2. Turn on the laser switch to assist in positioning on the spine
3. When measuring ATR, the measurement posture is as follows:
When measuring, the hand-holding posture is as follows:
Hold with both hands, thumb forward, four fingers behind to assist
4. After the measurement is completed, retract the telescopic arm and return to the initial state
Client Proposed Guidelines
Hope the design can solve the pain points:
-Improve product recognition and usability, and take into account both aesthetics and firmness
-Provide a warm and comfortable user experience
Visual expression direction:
-Highlight the professionalism of the product and the seriousness of medical equipment
-Can be made of non-slip and wear-resistant materials, and the overall color is warm
-The brand logo can be displayed
-Improve product recognition and usability, and take into account both aesthetics and firmness
-Provide a warm and comfortable user experience
Visual expression direction:
-Highlight the professionalism of the product and the seriousness of medical equipment
-Can be made of non-slip and wear-resistant materials, and the overall color is warm
-The brand logo can be displayed
Must include: product appearance and internal circuit

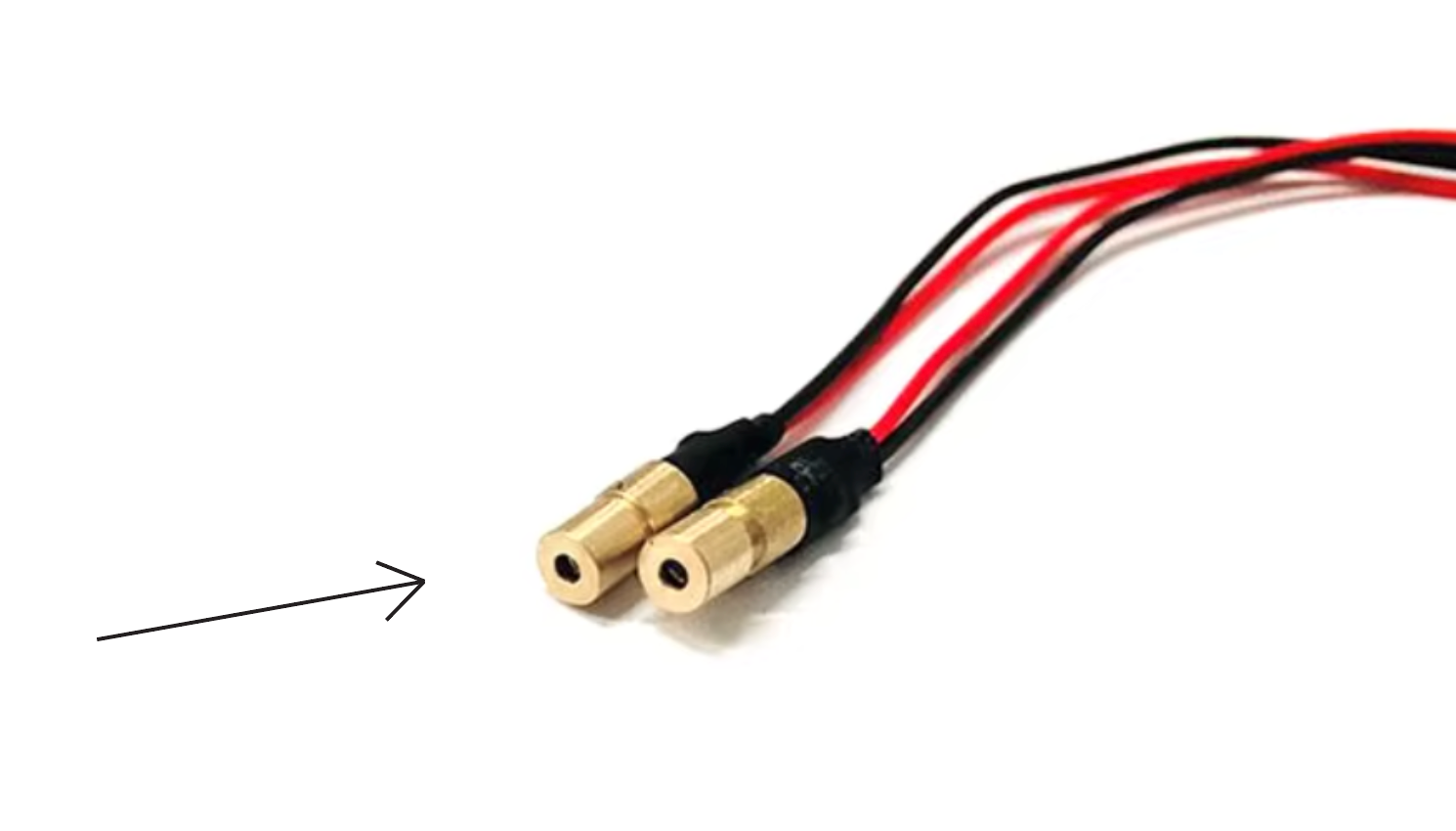

Cross-line laser head “4mm infrared cross laser module” sold by Huasu Electronics
Cross-line laser head “4mm infrared cross laser module” sold by Huasu Electronics

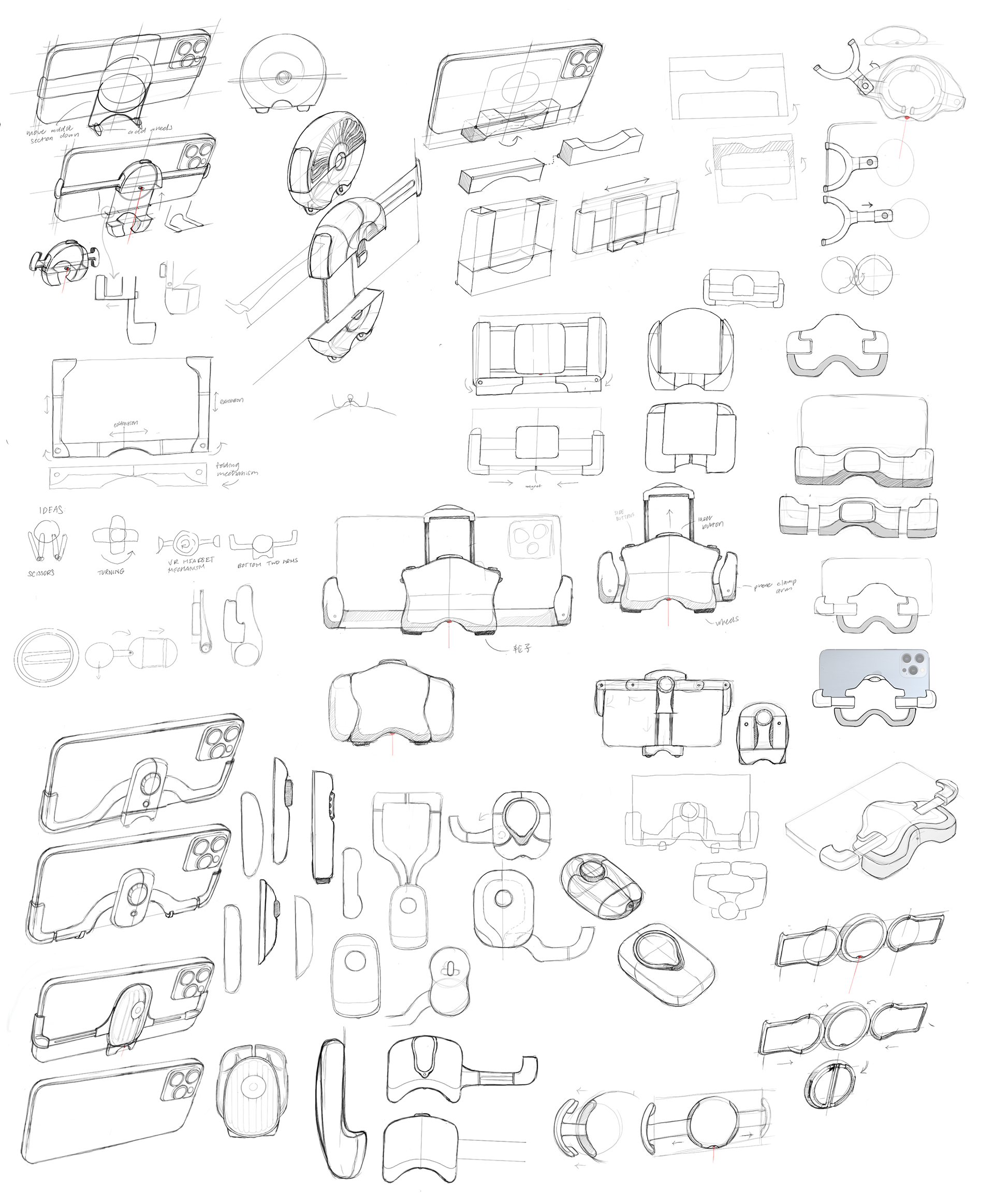

Ideation

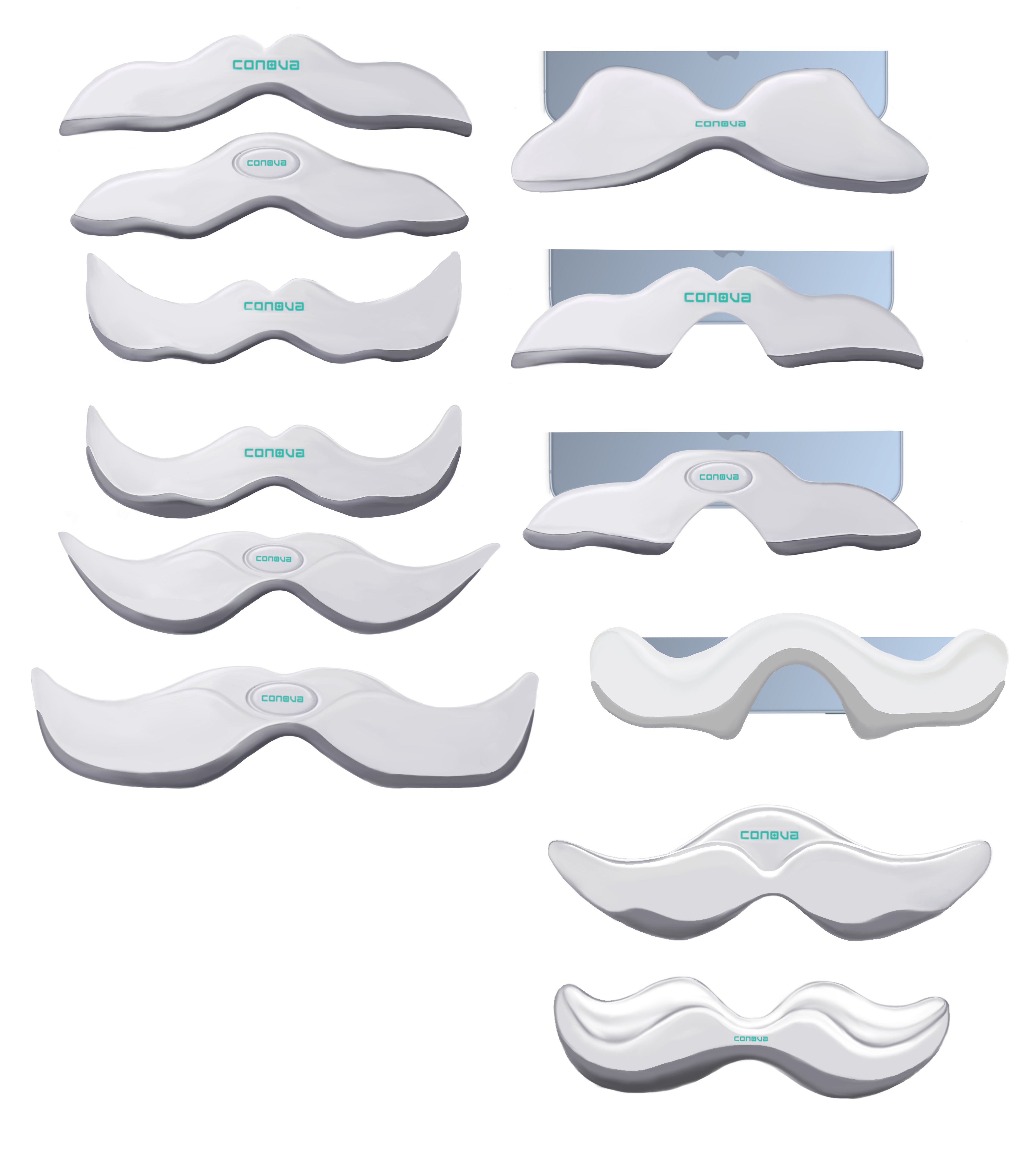

Client Inspiration Spin-Off

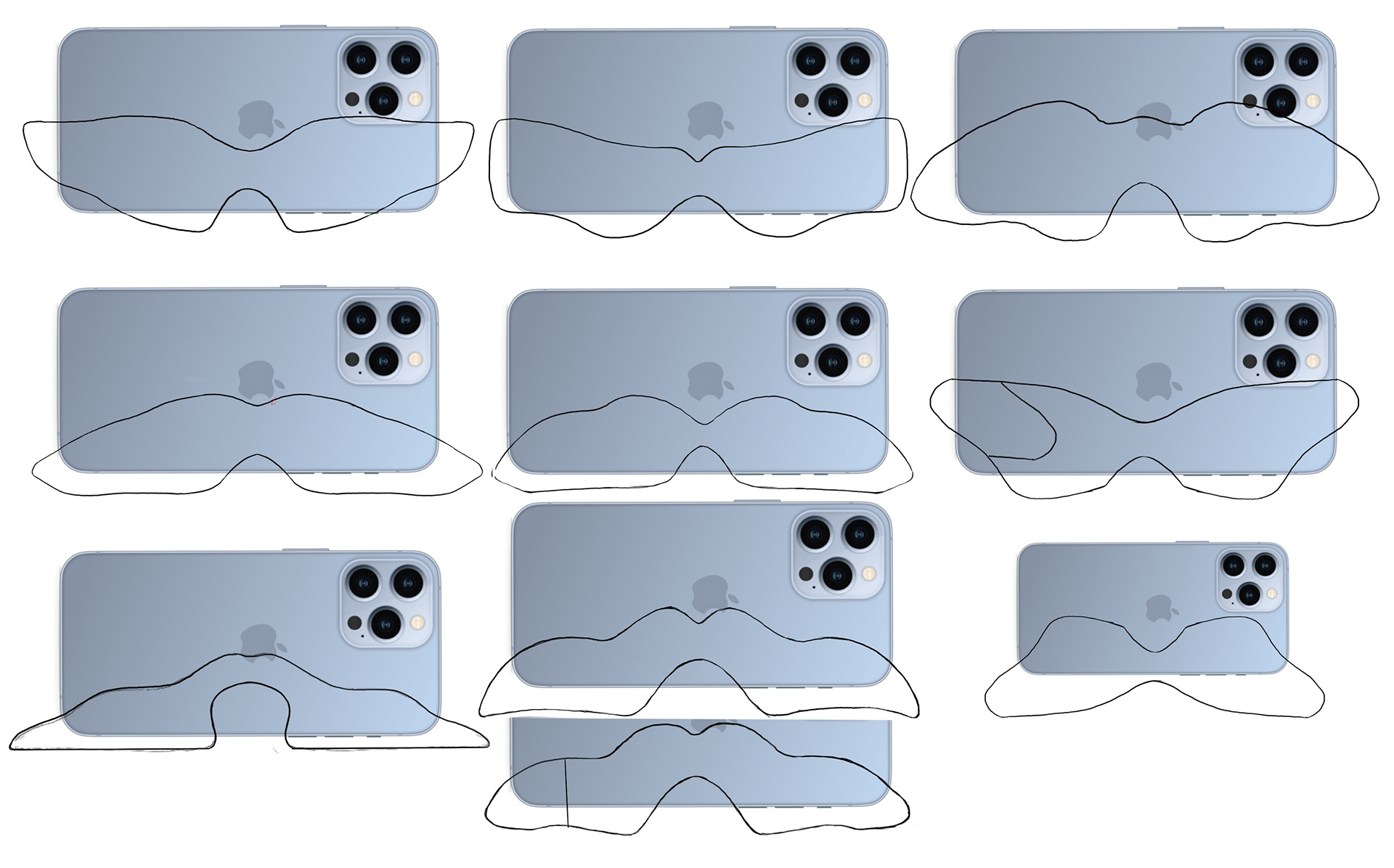

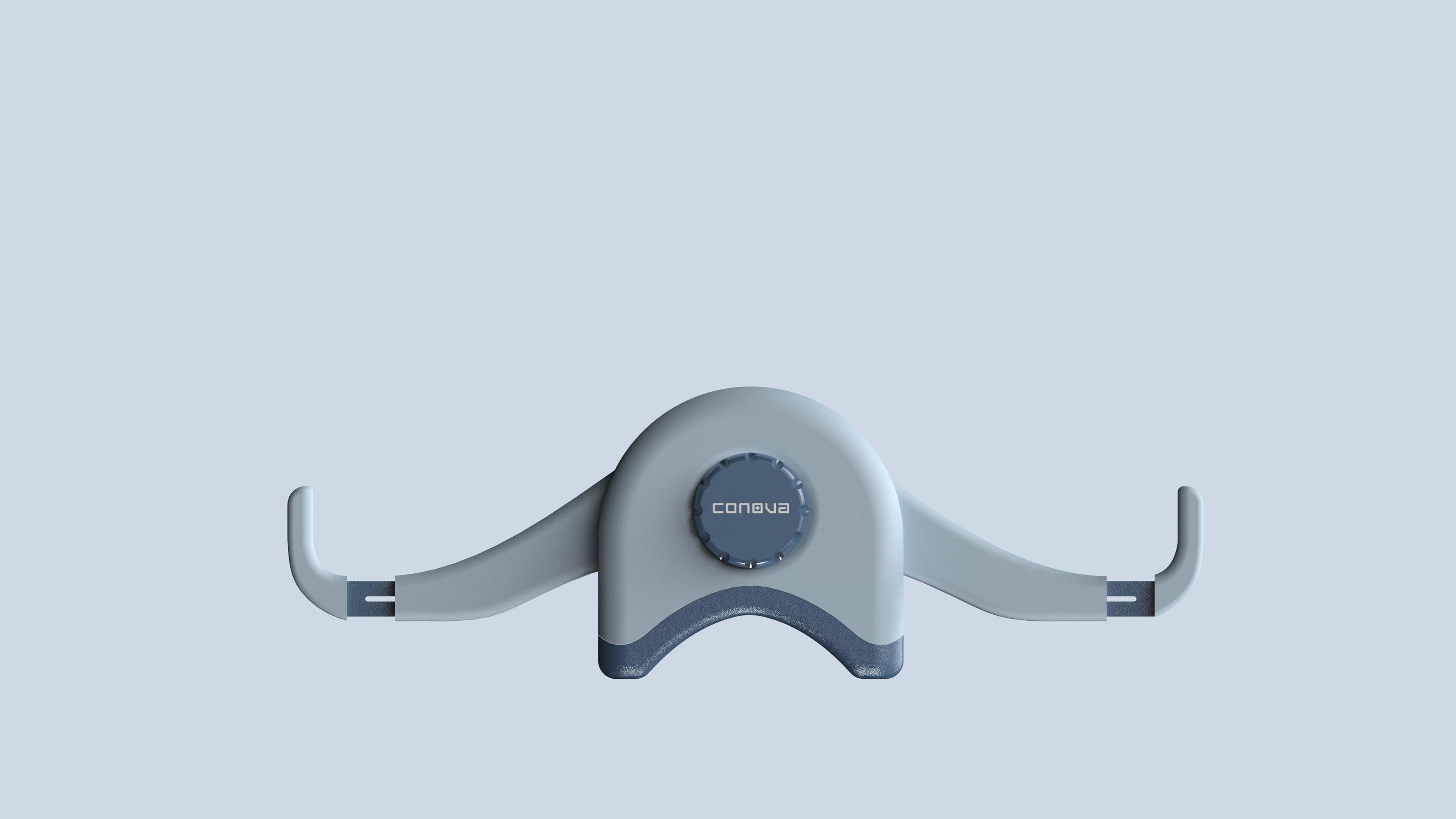

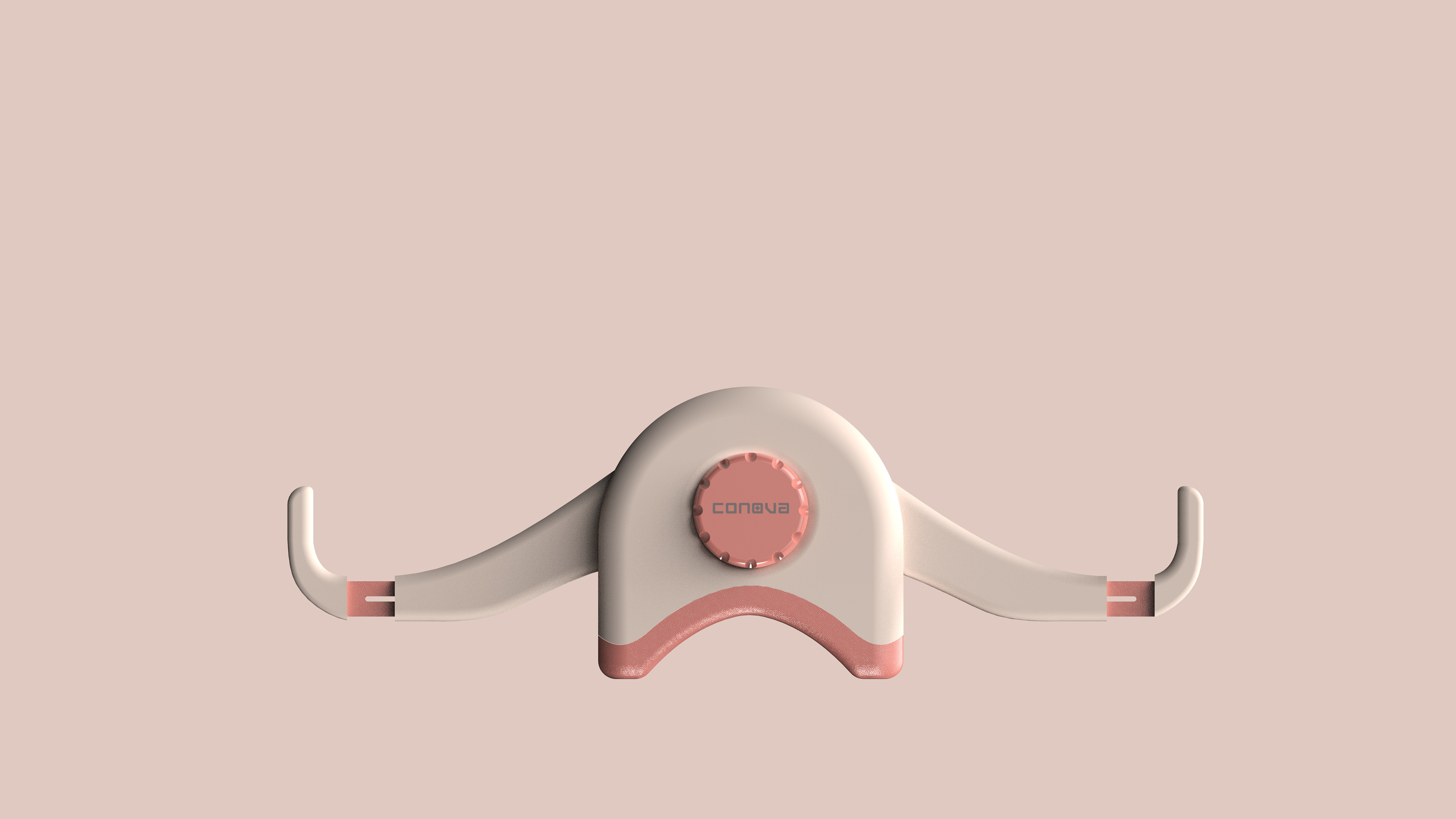

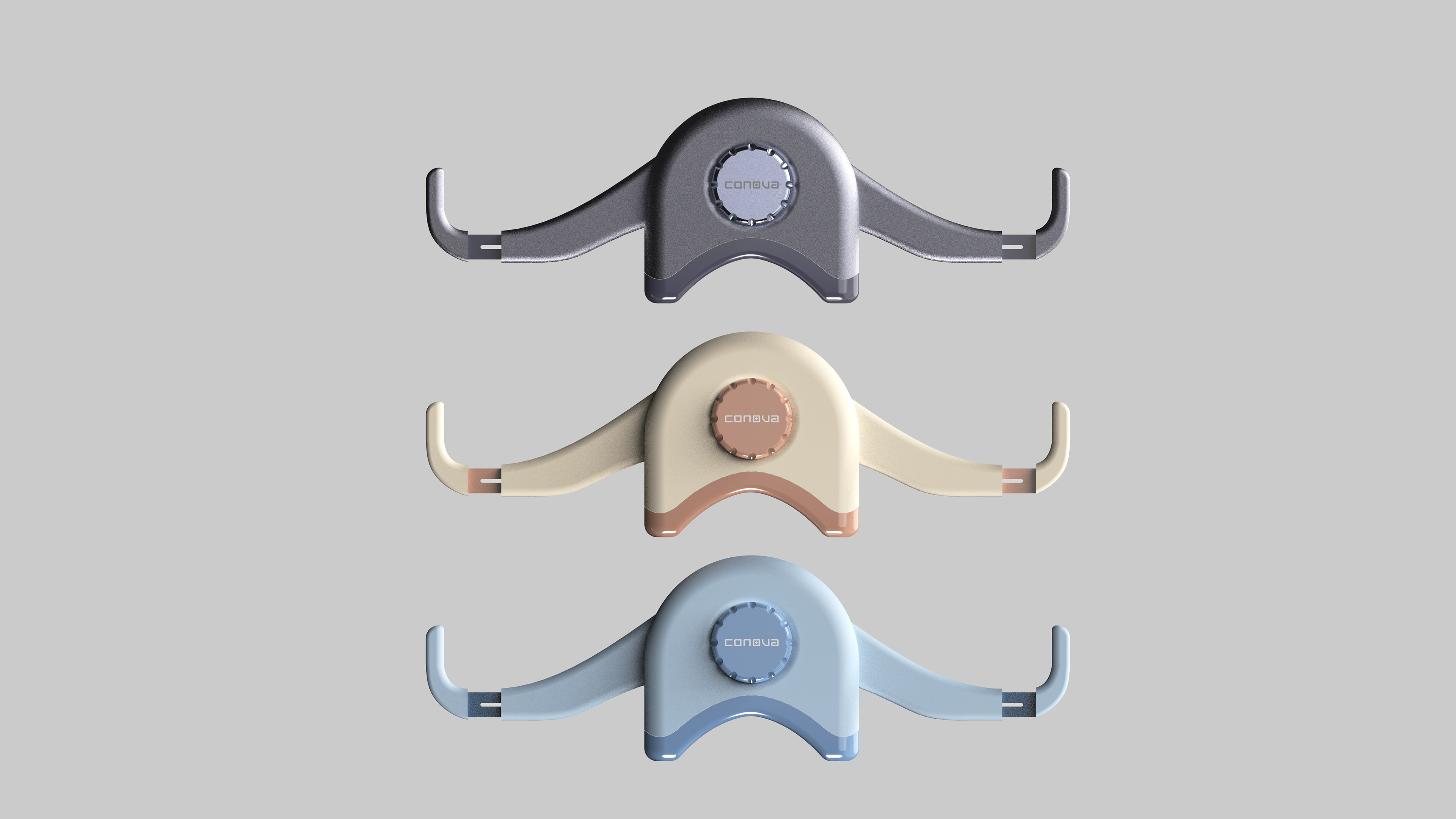

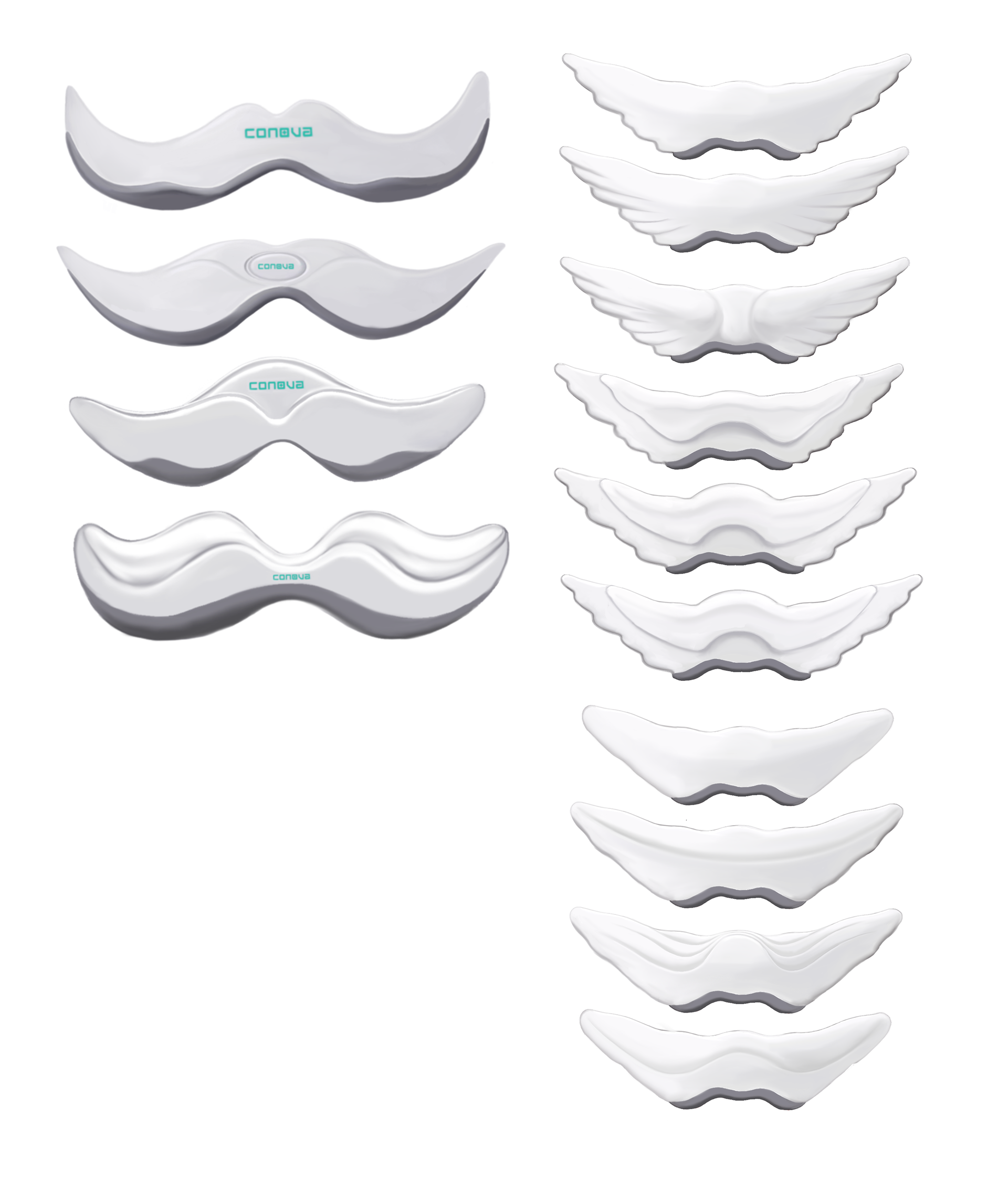

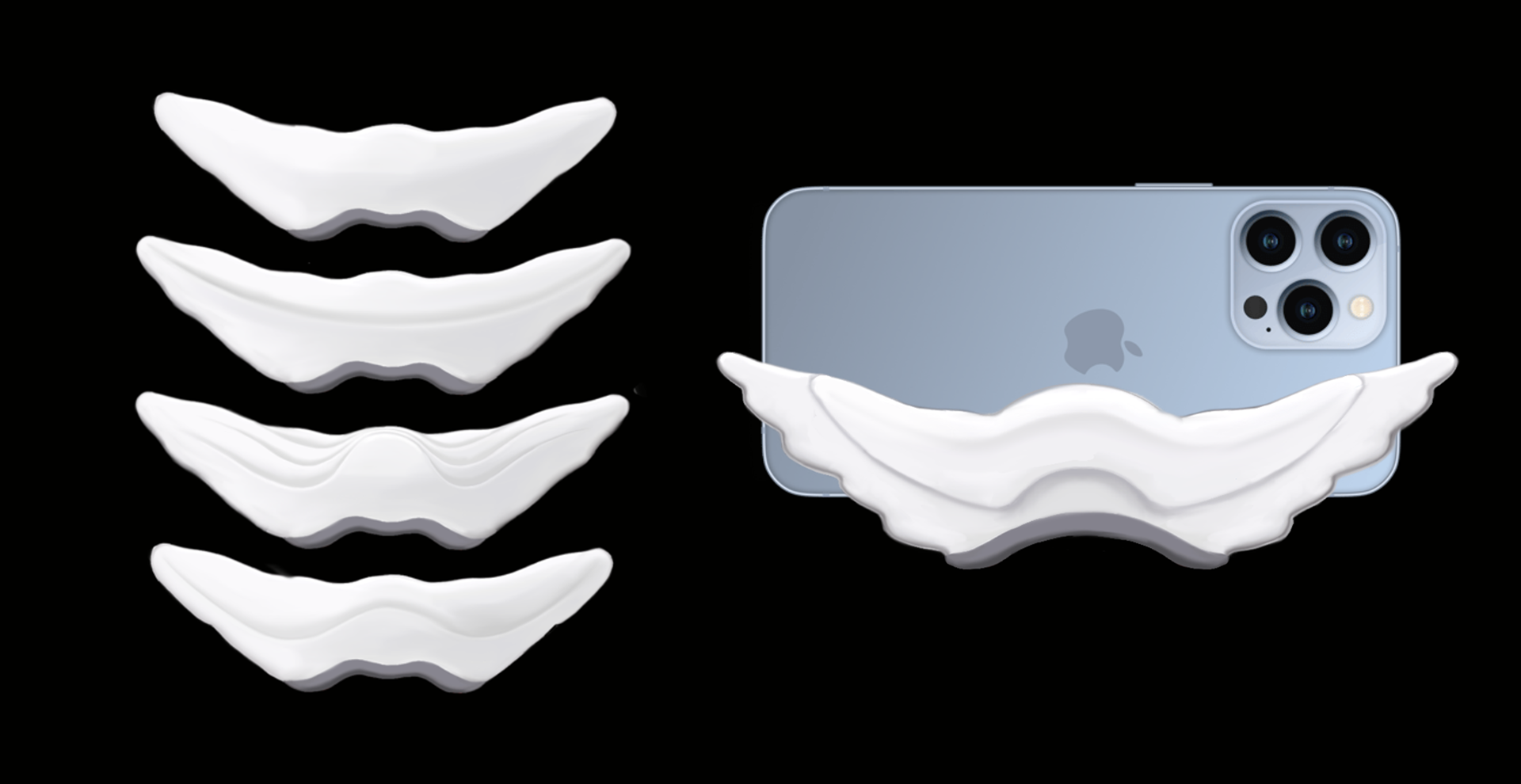

During the ideation process, the client suggested using wings as inspiration for a user-friendly design for the phone scoliometer. The wings would curve around the phone and extend horizontally to accommodate various sizes of handheld devices.

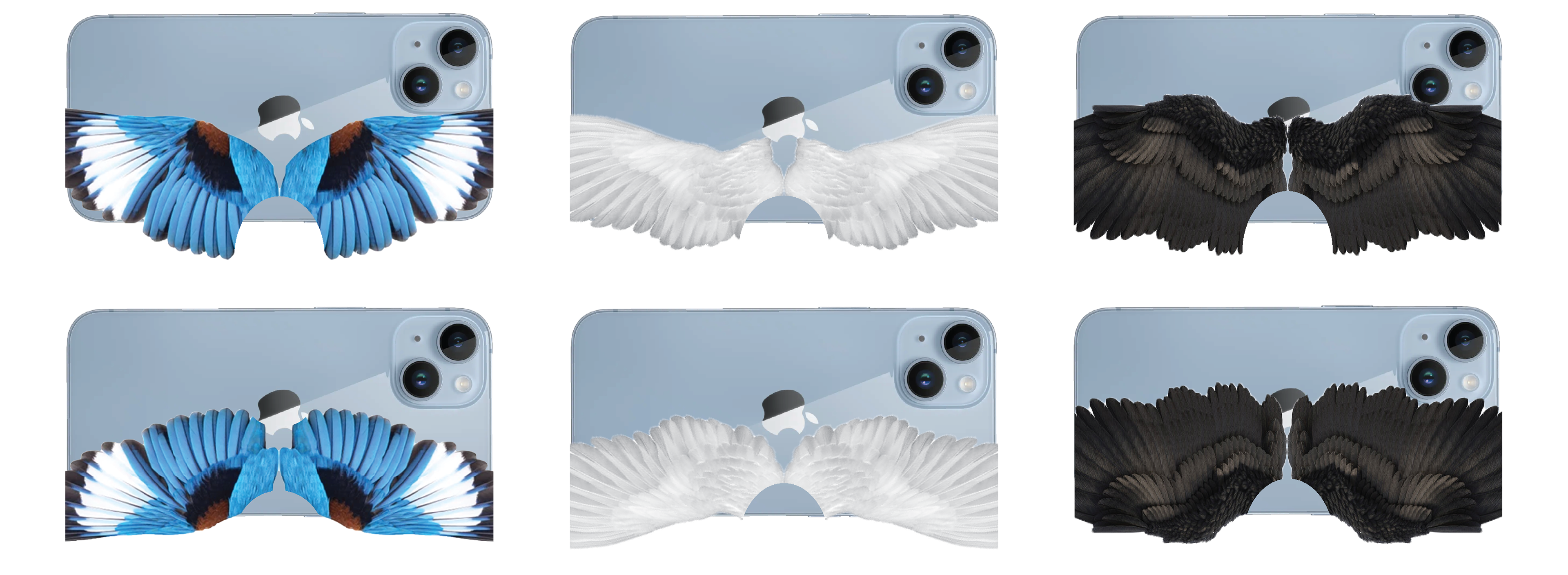

Client proposed bird/angel wing inspiration
